23.1 Inch Stretch Android LCD Display
23.1 Inch Stretch Android LCD Display
The 23.1 inch Stretched Android LCD Display is designed to deliver dynamic digital content in spaces where conventional displays cannot fit. Its ultra-wide form factor makes it an excellent solution for retail shelving, commercial environments, and information displays. Powered by Android, it enables easy content management while providing reliable performance, a slim profile, and flexible installation options.
Product Overview
Transform narrow display areas into engaging digital communication spaces with this stretched LCD display. Ideal for showcasing pricing, promotions, product information, and real-time content, the display integrates seamlessly into shelving systems while maintaining a clean, modern appearance. Its Android operating system allows for efficient content management across multiple locations.
Key Features
- 23.1 inch stretched LCD panel
- Ultra-wide 1920 × 158 resolution
- 400 cd/m² brightness
- 3000:1 contrast ratio
- Integrated Android operating system
- Quad-core processor
- 1 GB RAM and 8 GB internal storage
- Slim and compact design for shelf integration
- Wi-Fi, Ethernet, and Bluetooth connectivity
- 24/7 operation support
- Supports multi-language interface
Benefits
- Fits into narrow spaces where traditional displays cannot be installed.
- Displays dynamic pricing, promotional campaigns, and product information directly at the point of sale.
- Supports centralized content management for multiple stores or locations.

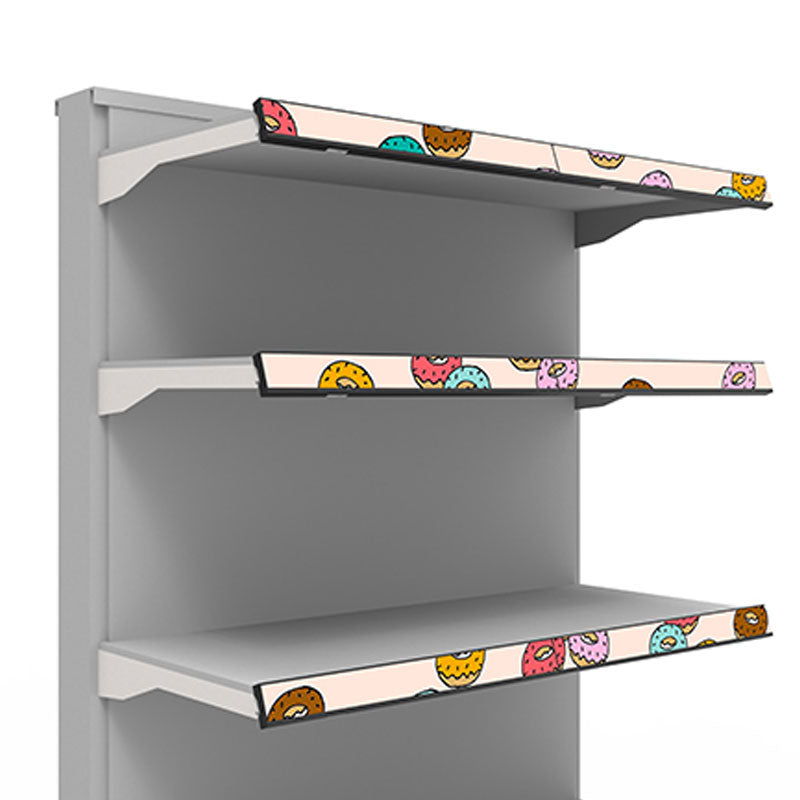

- Integrates seamlessly into existing retail shelving systems.
- Encourages cross-selling by highlighting complementary products and special promotions.
- Android-based architecture simplifies content updates and future scalability.
- Designed for continuous operation in commercial environments.
Typical Applications
- Retail shelf displays
- Digital pricing systems
- Product information displays
- Promotional and advertising displays
- Commercial digital signage
Technical Specifications
| Display Size | 23.1" Stretched Panel |
|---|---|
| Resolution | 1920 × 158 |
| Active Display Area | 585.6 (H) × 48.19 (V) mm |
| Brightness | 400 cd/m² |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 89° / 89° / 89° / 89° (L/R/U/D) |
| Display Colors | 16.7 Million |
| Processor | Quad-Core CPU |
| Memory | 1 GB RAM |
| Internal Storage | 8 GB |
| Operating System | Android OS |
| Wireless Connectivity | Wi-Fi 802.11 b/g/n |
| Ethernet | 10/100/1000 Mbps |
| Bluetooth | Bluetooth 4.0 |
| USB | USB 2.0 (Micro Host), USB OTG |
| Card Slot | SD/MMC Card Slot |
| Network Port | RJ45 Ethernet |
| Supported Video Formats | MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV |
| Supported Image Formats | JPEG, BMP, and others |
| Power Input | DC Input |
| Power Consumption | 20 W |
| Power Adapter | 12V / 5A |
| Product Dimensions | 598 × 61 × 20 mm |
| Package Dimensions | 725 × 150 × 100 mm |
| Product Weight | 1 kg |
| Package Weight | 2 kg |
| Mounting | VESA Wall Mount Compatible |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 10% to 80% |
| Operation | 24/7 Continuous Operation |
| Languages | Multi-language Support |
Care & Usage
- Designed for continuous 24/7 commercial operation.
- Operate within an ambient temperature range of 0°C to 50°C.
- Store between -20°C and 60°C when not in use.
- Use in environments with 10% to 80% relative humidity.
- Install using a compatible VESA wall mounting system when required.
